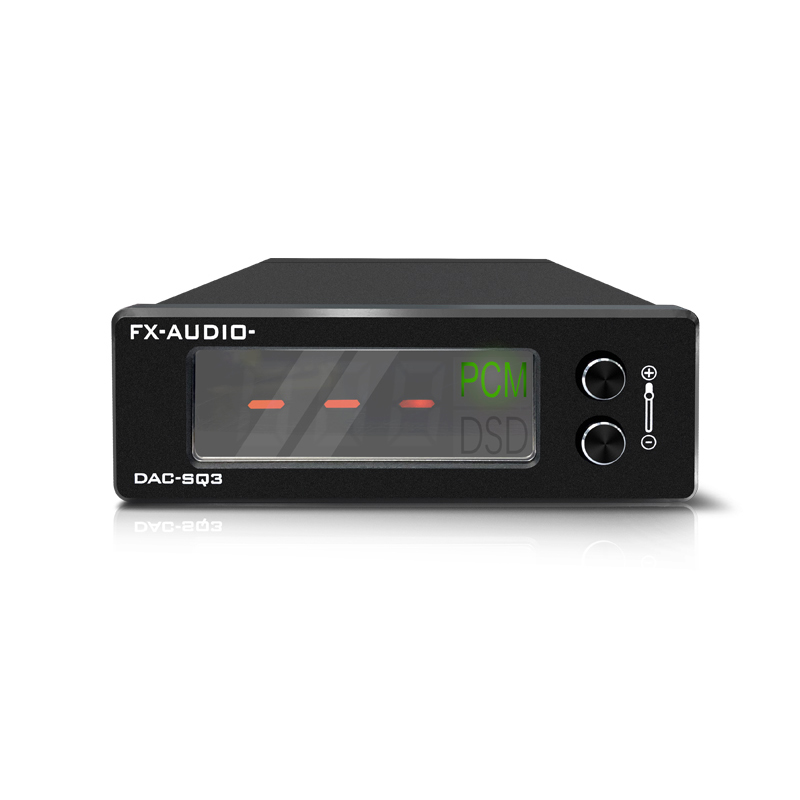

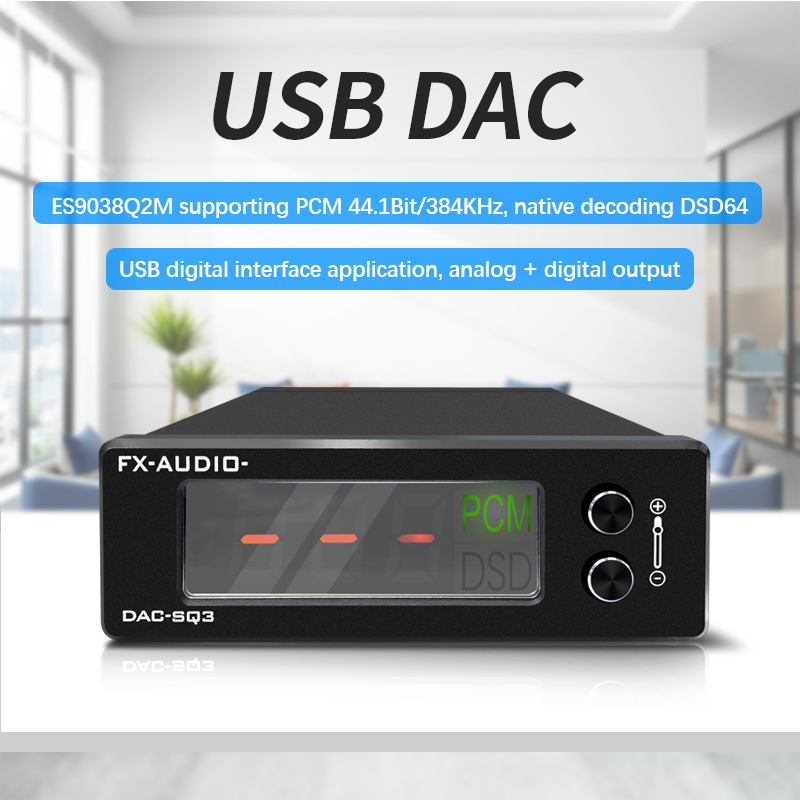

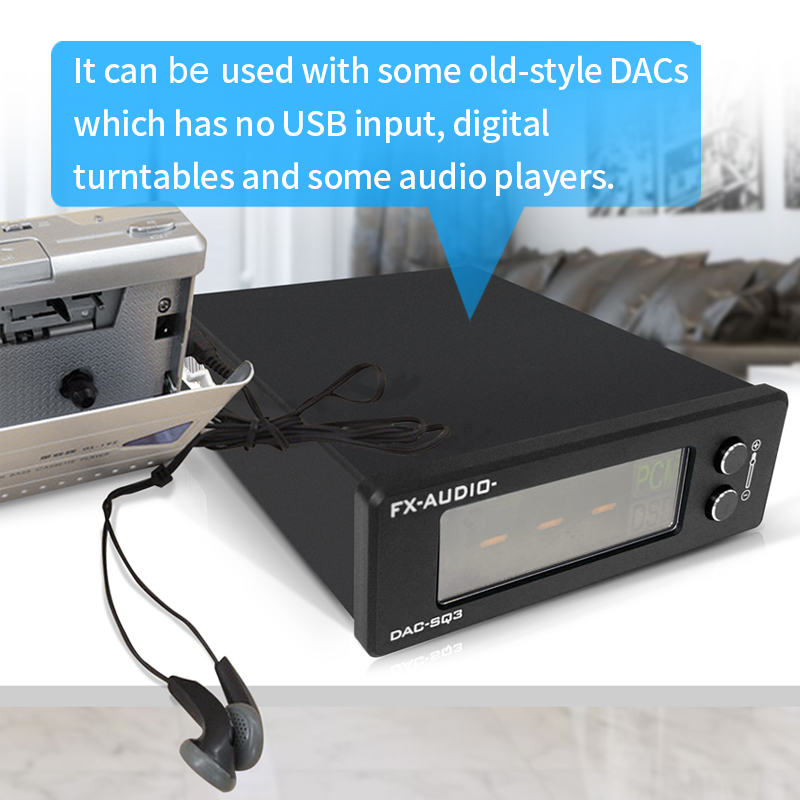

DAC-SQ3

This decoder can be connected to mobile phones, computers, tablets, CD/DVD/BD players, TVs, etc. through optical fiber, coaxial, PC-USB or Bluetooth interfaces as input. At the same time, you need to connect speakers or 6.35mm headphones as output devices. After connecting the audio input device and power amplifier or speaker or 6.35mm earphone and other output devices, press and hold the power button to turn on and off the machine, short press the button to switch to the correct input mode. If you use Bluetooth input, please contact the FX- AUDIO-D01 can play music after pairing.

Product Features of D01:

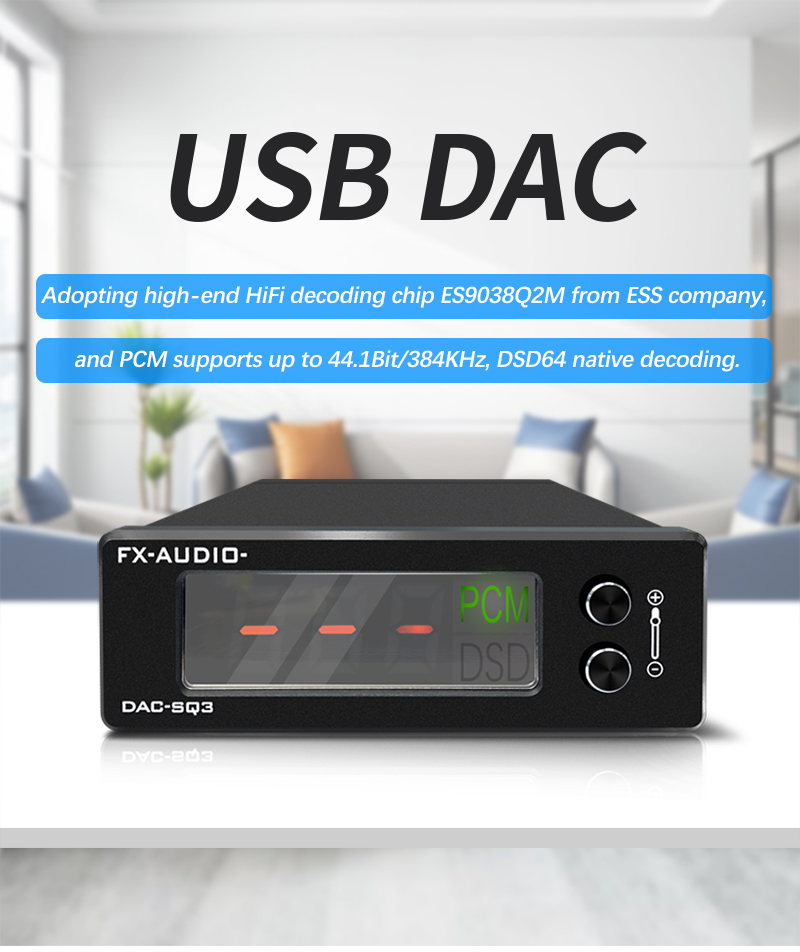

1.ES9038Q2M decoding chip

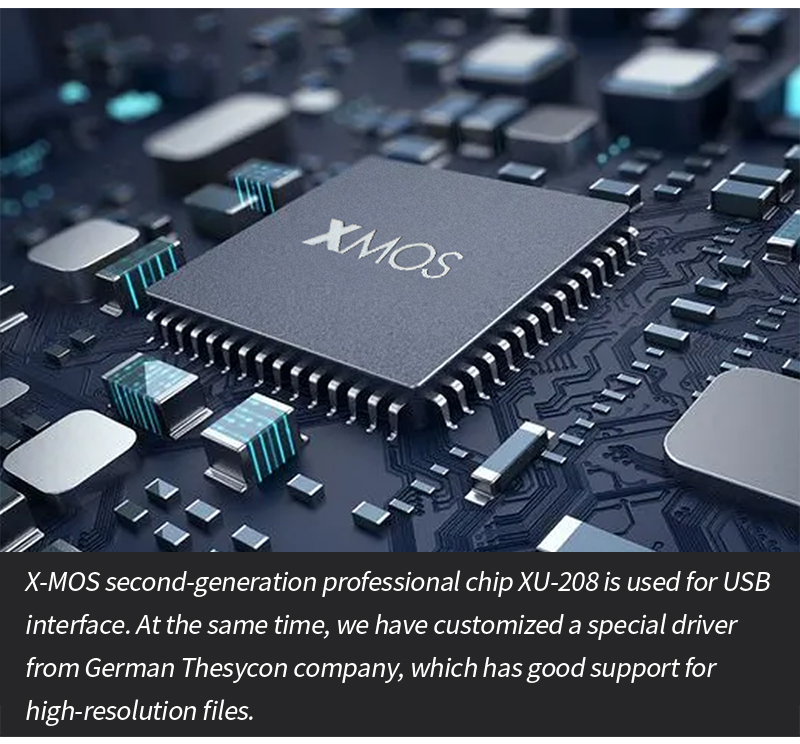

2. XMOS XU208 chip, customized driver, support sampling rate 16-32Bit/44.1-768kHz

3. DSD supports up to DSD512/ DSD256/ DSD128/ DSD64

4. Combines two functions: decoder and independent headphone amp

5. Multiple input methods: optical fiber/coaxial/PC-USB/Bluetooth

6.Bluetooth 5.0 CSR8675 chip, support APTX-HD, LDAC

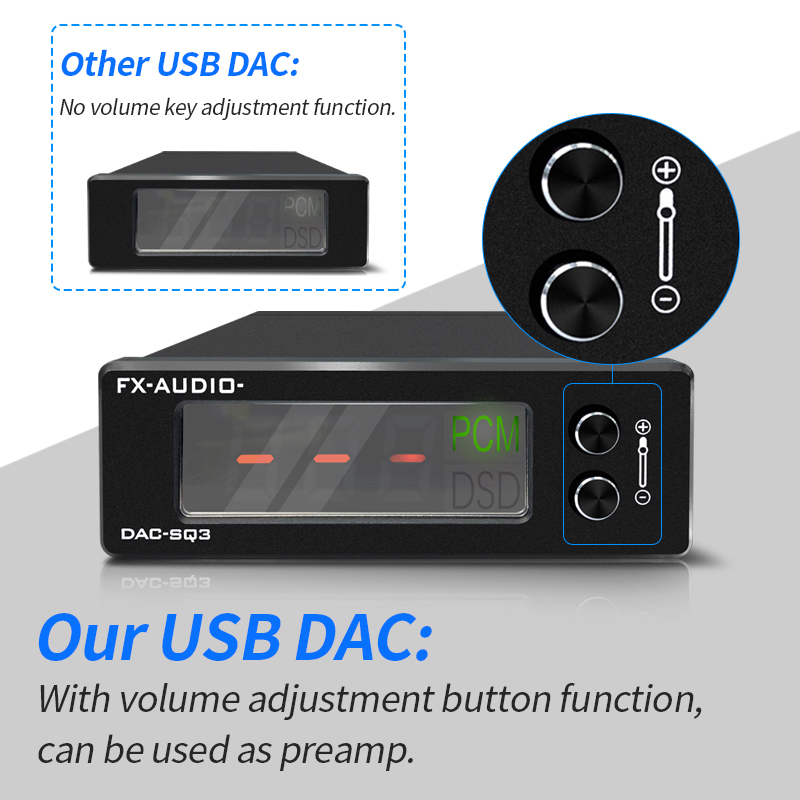

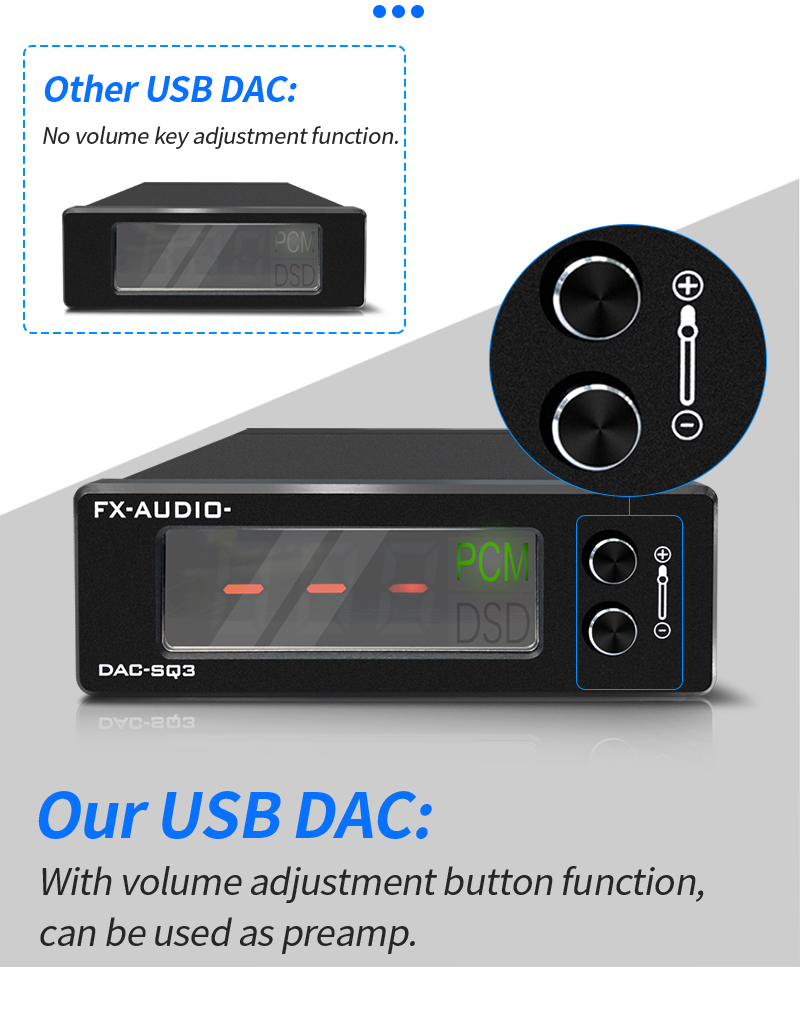

7. Volume knob can adjust the volume of speakers and headphones

Specifications:

Chipset: STM32+XMOS XU208+ES9038Q2M+TPA6120A2DWPR+LME49720NA+CSR8675

Line Out RMS Level: 2Vrms@0dBFS

THD+N: <0.002% @1KHz

SNR: 115dB @1kHz

Dynamic Range: 115dB @1kHz

Sampling Rate: USB 16Bit-32Bit /44.1K-768K, DSD64/DSD128/DSD256/DSD512;

Coaxial /Optical:16Bit-24Bit/ 44.1kHz-192kHz；

Bluetooth: 16Bit/24Bit 44.1kHz-96kHz

Headphone Power Output: 400mW x 2@32Ω THD+N<1%, 90mW x 2@300Ω THD+N<1%

Headphone THD+N: <0.004% @1kHz

Headphone SNR: >110dB @1kHz

Headphone Frequency Response: (+0, -0.5dB) (20Hz～20KHz)

Headphone Impedance: 16Ω-300Ω

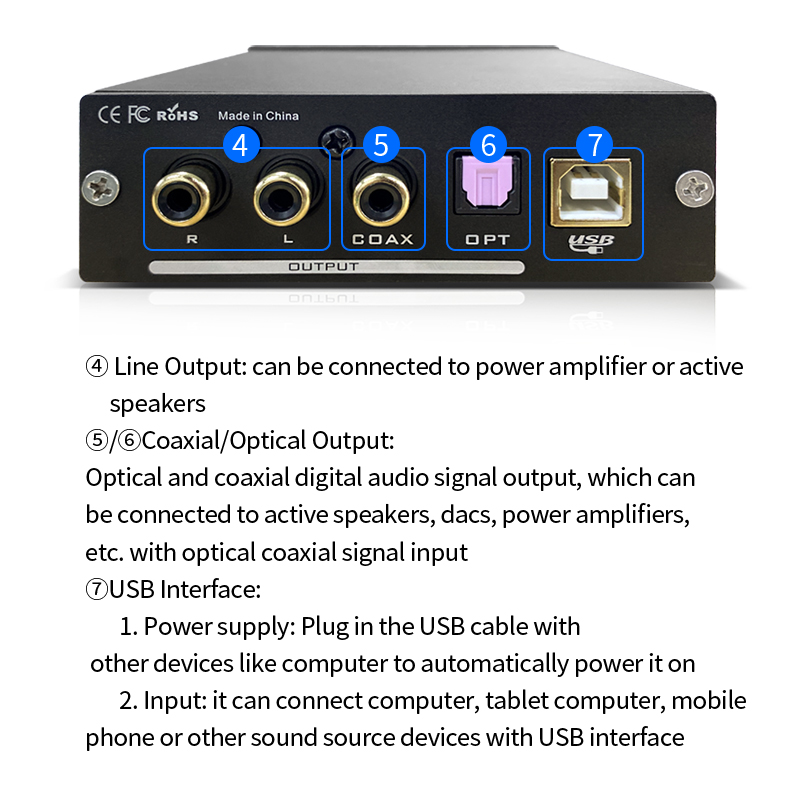

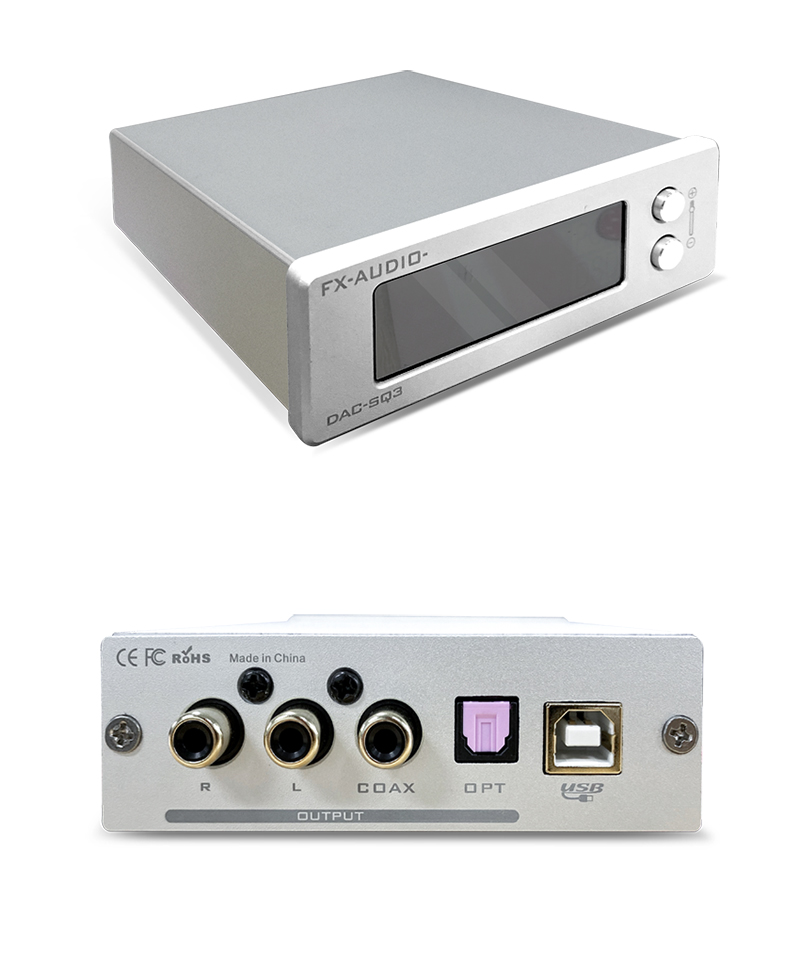

Audio Input: PC-USB, Optical, Coaxial, Bluetooth

Audio Output: Line Out, 6.35mm Headphone

DC Power Supply: 12V 1A

Unit Size: 11.4*17.8*3.3 cm

Unit Weight:0.47kg

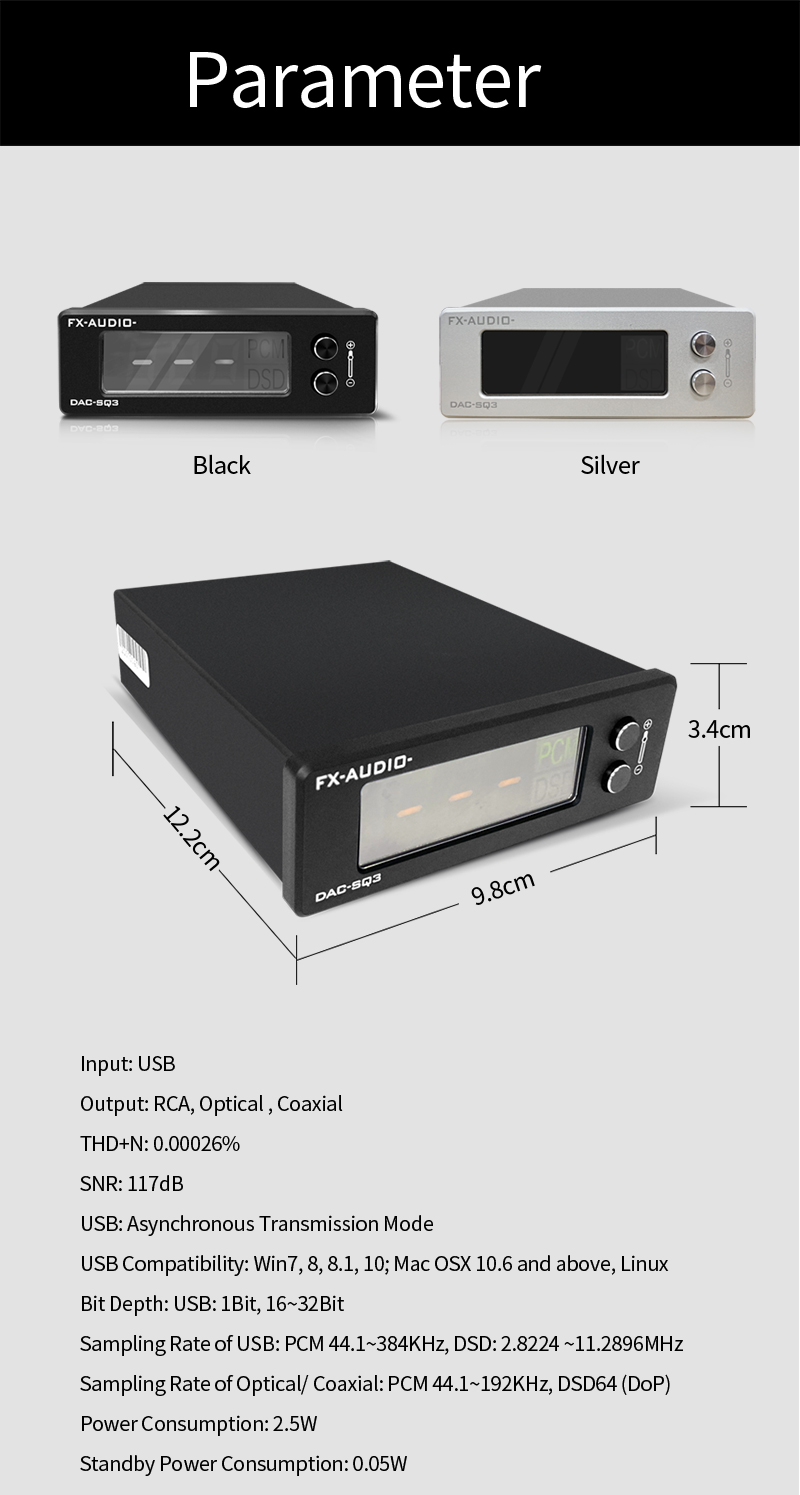

Parameters

This decoder can be connected to mobile phones, computers, tablets, CD/DVD/BD players, TVs, etc. through optical fiber, coaxial, PC-USB or Bluetooth interfaces as input. At the same time, you need to connect speakers or 6.35mm headphones as output devices. After connecting the audio input device and power amplifier or speaker or 6.35mm earphone and other output devices, press and hold the power button to turn on and off the machine, short press the button to switch to the correct input mode. If you use Bluetooth input, please contact the FX- AUDIO-D01 can play music after pairing.
