Product Details

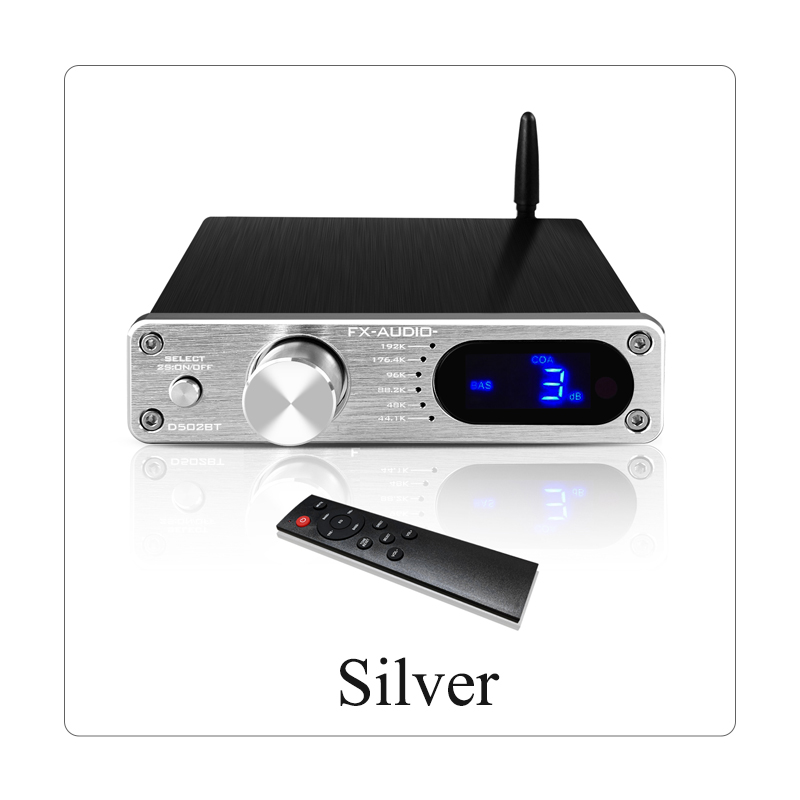

D502BT
FX-AUDIO-
60W+60W Full Class-D Digital Amplifier
Our brand FX AUDIO is dedicated to providing HiFi products for audiophiles who pursue great sound quality. This full digital amplifier with 2 x 60W power is designed for playing music from your audio input devices to your L/R passive speakers or active subwoofer speakers, transmits digital audio signal. It is perfect for your bookshelf HIFI home theater acoustic sound system. (Please Note: Only support PCM format, not support DTS and Dolby.) We provide 12-month warranty for all our products. Please feel free to contact us.
Bluetooth 5.0 Home Audio Full Digital Amplifier
- Built-in Bluetooth 5.0 QCC3003 chip for connecting wireless audio streaming
- Special subwoofer and L/R passive speakers outputs
- Optical/ coaxial/ micro-USB/ Bluetooth inputs
- DSP Bass and treble volume control
- LED indicator for sample rate
- Package includes remote control for wireless control, but need CR2025 button battery( not included)
- LED display shows corresponding inputs and volume
- Complimentary 3.5mm audio cable and RCA cable
Technical Specs:
Chipset: TAS5342A+SA9023+CS8422+TASS5508C+STM8S103F3-32+PCM1808+QCC3003
Power Output: 60W+60W@4Ω, 45W+45W@8Ω
Sampling Rate: Optical/Coaxial 16-24Bit/ 44.1kHz-192kHz, USB--16-24Bit/ 44.1kHz-96kHz, AUX/BT--24Bit/ 48kHz
SUB Level Output: 2.7Vrms
THD: 0.04%
SNR: -106dB
Frequency Response: ±1dB(20Hz-20kHz)
Input: AUX, Optical, Coaxial, USB, BT
Output: SUB output, Speaker R/L
Power Supply: DC 24V 4A
- Parameters
FX-AUDIO-
60W+60W Full Class-D Digital Amplifier
Our brand FX AUDIO is dedicated to providing HiFi products for audiophiles who pursue great sound quality. This full digital amplifier with 2 x 60W power is designed for playing music from your audio input devices to your L/R passive speakers or active subwoofer speakers, transmits digital audio signal. It is perfect for your bookshelf HIFI home theater acoustic sound system. (Please Note: Only support PCM format, not support DTS and Dolby.) We provide 12-month warranty for all our products. Please feel free to contact us.
Bluetooth 5.0 Home Audio Full Digital Amplifier
- Built-in Bluetooth 5.0 QCC3003 chip for connecting wireless audio streaming
- Special subwoofer and L/R passive speakers outputs
- Optical/ coaxial/ micro-USB/ Bluetooth inputs
- DSP Bass and treble volume control
- LED indicator for sample rate
- Package includes remote control for wireless control, but need CR2025 button battery( not included)
- LED display shows corresponding inputs and volume
- Complimentary 3.5mm audio cable and RCA cable
Technical Specs:
Chipset: TAS5342A+SA9023+CS8422+TASS5508C+STM8S103F3-32+PCM1808+QCC3003
Power Output: 60W+60W@4Ω, 45W+45W@8Ω
Sampling Rate: Optical/Coaxial 16-24Bit/ 44.1kHz-192kHz, USB--16-24Bit/ 44.1kHz-96kHz, AUX/BT--24Bit/ 48kHz
SUB Level Output: 2.7Vrms
THD: 0.04%
SNR: -106dB
Frequency Response: ±1dB(20Hz-20kHz)
Input: AUX, Optical, Coaxial, USB, BT
Output: SUB output, Speaker R/L
Power Supply: DC 24V 4A
